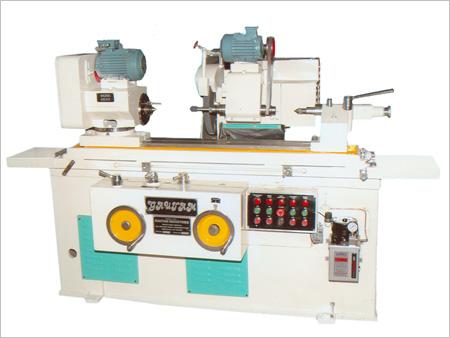

GCG 600
700000.00 - 1500000.00 INR/Unit
Product Details:
- Supply Ability : 1000 Unit Per Day
- Click to view more
X
Price And Quantity
- 1 Unit
- 700000.00 - 1500000.00 INR/Unit
Trade Information
- 1000 Unit Per Day
- 45 Days
Product Description
| MODEL NO. | GCG 600 |
| GENERAL : - | |
| Max. Grinding Length | 600 |
| Center Height | 165 |
| Max. Work Diameter Ground | 330 |
| Table Feed | Mech / Hyd. |
| Max. Swivel of Table | 8 |
WORK HEAD AND TAIL STOCK : - | |
| No. of Speed of Work Head | 4 or variable obtained by AC Drive or DC Motor |
| Morse Taper in Work Head | MT-4 |
| Swivel of Work Head | 60 |
| Morse Taper in Tail Stock | MT-4 |
| Work Head Motor | 1 HP |
GRINDING WHEEL & TABLE FEED : - | |
| Grinding Wheel | 16" x 1.5" x 5" |
| Grinding Wheel Motor 1440 RPM | 3 HP |
| Wheel Head Swivel | 60 |
| Table Feed Motor 960 RPM | 1 HP |
| No. of Speed of Table Feed | Mechanical:4 or variable obtained by AC Drive or DC Motor. Hydraulic Model: Variable obtained by Flow Control Valve |
INTERNAL GRINDING ATTACHMENT : - | |
| Grinding Spindle outer Diameter | 60 MM |
| Max. Quil Length | 100 MM |
| Min. & Max Dia of Hole Grinding | 166 - 100 MM |
| Spindle Speed | 10000 RPM |
| Internal Grinding Attachment Motor 2800 RPM | 1 HP |
WEIGHT | |
| Approx. Gross Weight | 2800 Kgs. |
